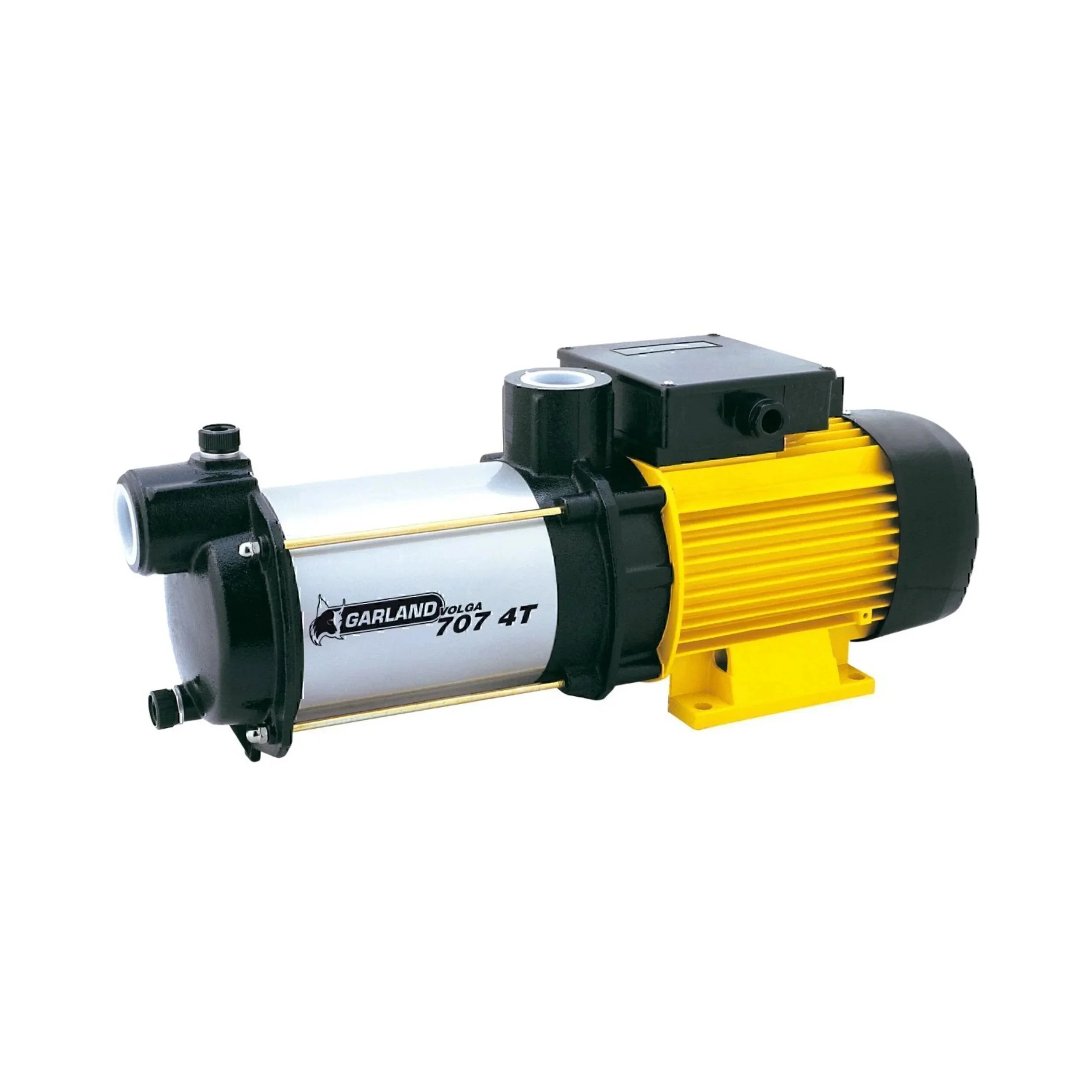

Multistage surface pump with 920W of power. 6.7 Amperes. Pump body manufactured in cast iron HT250. Ideal for use as a pressure group with the optional pressure control accessory Garland Head.
Supplied with type C connection for direct connection to the electrical network or to the Garland Head pressure controller without the need for splicing. It has 4 turbines in the pump.
Engine Type.Garland Eléctrico AC
Voltage (V)230
Freq. (Hz)50
Power (kW)0,92
Suitable for sludge (Yes/No)No
Cut-off buoy (Yes/No)No
Chassis materialPolipropileno
Suction diameter (mm)33
Drive diameter (mm)33
Maximum discharge height (m)43
Maximum flow rate (l/h)6000
Empty machine weight (kg)14,5
Length in use (cm)20
Width in use (cm)44
Height in use (cm)22
Packaging weight (kg)15,3
Packaging length (cm)21
Packaging width (cm)46,5
High packaging (cm)23
Maximum temperature of the water to be aspirated (ºC)40
